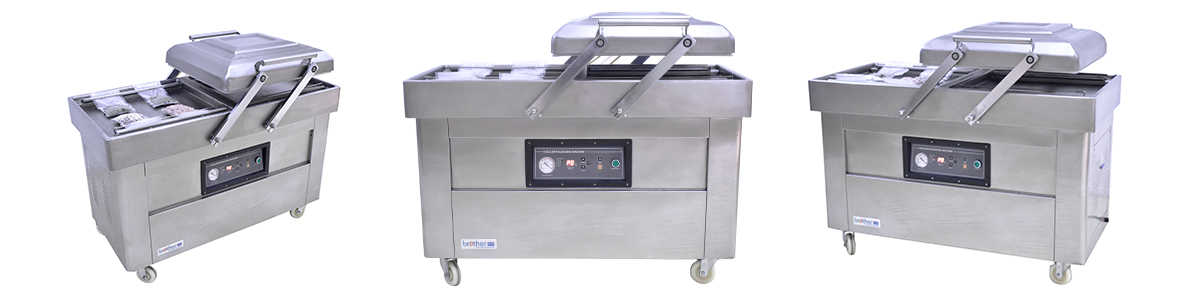

304 S.S vacuum chamber
chamber use 304 Stainless steel material. It’s more acid, corrosion, and heat resistant, more suitable for vacuum food, and has a long service life.
l:40-80Cm Sealing bar
The sealing length is available in 40CM/50CM/60CM/80CM options, and the vacuum chamber depth can be customized according to the product size.
CAN USE TO DRY AND WET FOOD .
The sealing length is available in 40CM/50CM/60CM/80CM options, and the vacuum chamber depth can be customized according to the product size.
|
Model |
DZ(Q)400&500/2SB |
DZ(Q)600/2SB |
|
Chamber size |
540*570*50mm |
540*670*50mm |
|
Double sealing-bar |
500×10mm |
620*10mm |
|
Capacity |
2×20m3/h |
40m3/h |
|
Cycle time |
10-35sec |
10-40sec |
|
Voltage |
3 Phase 380V/50Hz |
3 Phase 380V/50Hz |
|
Power |
1.5KW |
3.2KW |
|
Machine size |
1250×750×950mm |
1450*750*1000mm |
|
Options |
Gas flush, 40m3/h pump, Busch pump, Other voltages available |
Gas flush, 63m3/h pump, Busch pump, Other voltages available |
