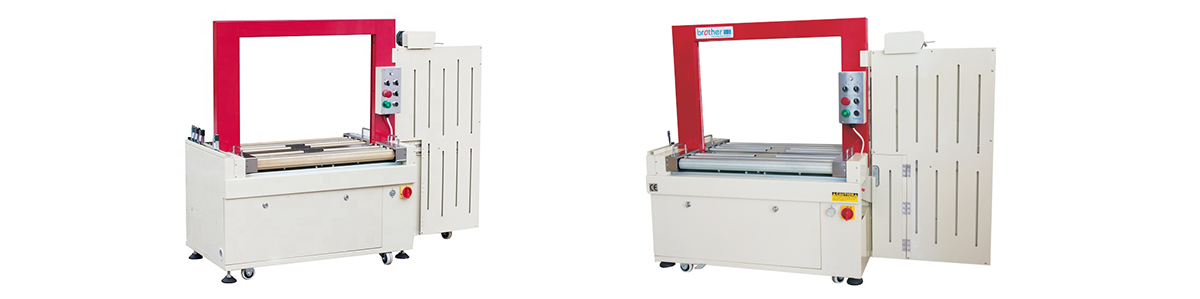

APM8060C

APM series fully automatic strapping machine with high accuracy in mechanical manufacturing, rigorous structure, firmly strapping, high speed, low failure rate, long life, etc. it can be used in ultra-thin strap, and also can used in packing line.

Produced by

Brochure Download



Product Overview Benefits Technical Features Detail

Description

Back

Product Benefits

Back

High Efficiency

2.0 second/strap 30cycles/min

easy Maintenance

No greasing, mechanism is stable and durable.

Wide Application

It can be used for strapping only, and can also be connected to other packing machines for automatic operation.

Technical Features

Back

Model	APM8060C	AP8060L (Low table Model)
Strapping tension	40-600N Adjustable	100-600N Adjustable
Strapping speed	2.18Sec./Strap	2.18Sec./Strap
Strap width	9、12、15mm	9、12、15mm
Power supply	380V/50-60Hz 0.5KVA	380V/50-60Hz 0.5KVA
Arch size	800*600mm	800*600mm
Machine size	17506601340mm	15806601410mm
Machine Weight	180kg	180kg
