High Productivity
1400boxes/h carton load while the machine is in operation.
Fast Size Change

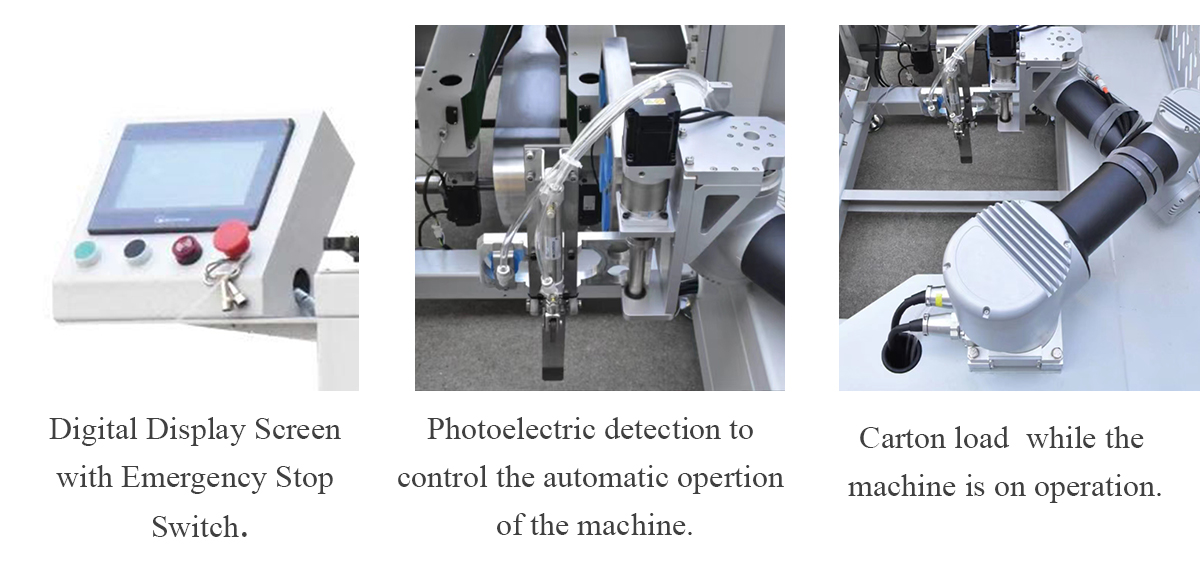

Adjustments by handwheels that guarantee precision and repeatability.
Cycle type selection
Continuous cycle or lots.
|
Model |
CER5040 |
|
Suitable Case |
L200-500mm / W120- 400mm H120-350mm, L+W<920mm, H+1/2W<550mm |
|
Height of table |
650mm |
|
Work speed |
15-25carton/min. |
|
Power |
3 phases, 220V-380/ 50/60HZ 5KW |
|
Air Source |
＞500L/min、 0.4~0.8 Mpa |
|
Opp tape |
W50mm or W60mm or W75mm |
|
Machine Weight |
NW-400KG GW-450kg |
