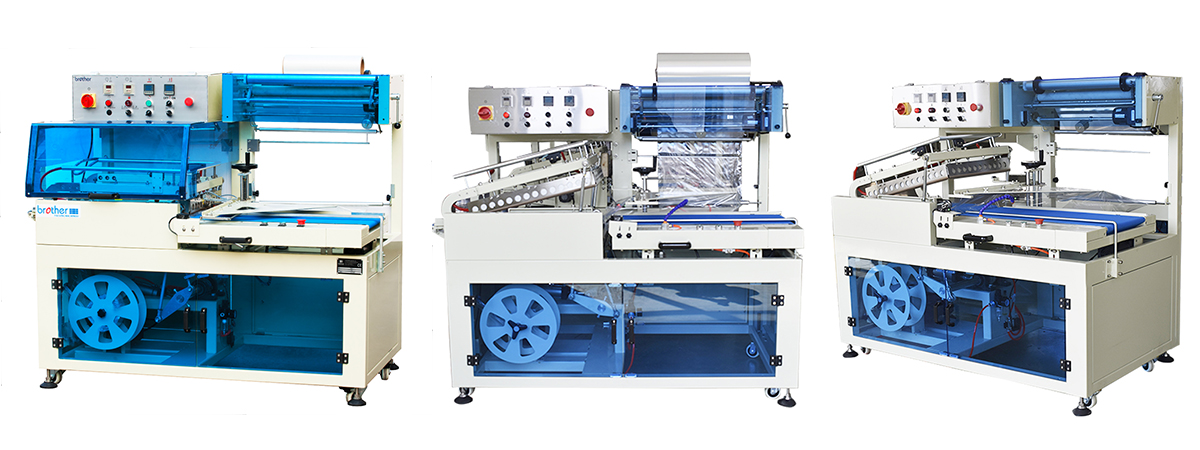

FQL450LB automatic L-type sealing machine concentrates bag-molding, sealing, cutting and object transmission in one operation; use shrink film as packaging materials. It has advantages of simple operation and high capacity. It is suitable for the need of big scale production.
Produced by
High capacity
25packs/min
Excellent Material
Hot head made of stainless steel (copper alloy)
The blade is made of measuring steel (manganese 13 material)
suitable for all kinds of products.
Packing of small size of objects is reached by functional choice
|
Model |
FQL450LB |
Capacity |
1200-1600 packs/hour |
|
Power Source |
220V/50-60HZ |
Air Pressure |
0.5 MPa |
|
Total Power |
1.35 Kw |
Conveyor Motor |
AC 220V/90W |
|
Power of Transverse Sealing |
550W |
Motor of Film Feeding |
AC220V/25W(have brake) |
|
Power of Vertical Sealing |
500W |
Motor of Waste Film Pulling |
AC220V/40W(have brake) |
|
Sealing Temp. |
170℃, according to thickness of film |
Motor of Waste Film Turning |
AC220V/15W |
|
Sealing Time |
0-3 Sec, normally 0.8-1.2 Sec |
Packing Material |
POF, OPP, PE |
|
Thickness of Film |
0.03-0.20mm |
Max. Sealing Size |
L500*W450mm |
|
Speed of Conveyor |
21.3m/min(front), 20m/min(rear) |
Max. Packing Size |
L500*W350*H110 |
|
Speed of Film Feeding |
17.6m/min |
Machine Size |
L1700*W1000*H1400mm |
|
Speed of Film Pulling |
19.4m/min |
Weight |
330 Kg |
